MINI BALER COMPACTORS
Comparison Chart

Small Footprints and Easy to Handle Bales

For those looking for the very smallest baler footprints and easy to handle, lightweight bales the Mini Balers are the best solution. These machines are basically a cross between a baler and a compactor which makes them easier to use than a traditional baler. The primary materials that can be baled in the Mini Balers are Cardboard, Plastic Wrap, Plastic Film, Shrink Wrap & Paper. Bale weights of corrugated cardboard can range from 65 - 165 lbs and plastic bales range from 80 - 110 lbs.



PeeWee Mini Baler - (P3-2820)

PeeWee Mini Baler Comparison Bale Size  28" W x 20" D x 26" H

Bale Materials & Weight Examples
('Up to' wt. in lbs.)

Bale Volume  6 Cubic Feet  Cardboard  - 65-110 lbs
Cycle Time  18 seconds Plastic Film / Wrap - 85 - 130 lbs
Stroke  22
Force  Up to 6,600 lbs
Electrical / Motor  1.5 HP
Overall Dimensions Height: 77" -  Width: 32" -  Depth: 29" - Depth (Door Open): 56





Textile Clothing PeeWee Mini Baler - (TC-2820)

PeeWee Textile Baler Bale Size  28" W x 20" D x 14" - 26" H

Bale Materials & Weight Examples
('Up to' wt. in lbs.)

Bale Volume  6 Cubic Feet  Textiles / Clothing  - 90 - 230 lbs
Cardboard - 65 - 110 lbs
Cycle Time  18 seconds Plastic Film / Wrap - 85 - 130 lbs
Stroke  22
Force  Up to 6,600 lbs
Electrical / Motor  1.5 HP
Overall Dimensions Height: 86" -  Width: 38" -  Depth: 30" - Depth (Door Open): 57"





Mini Baler Space Saver - (MB-2818)

Mini Baler Space Saver Comparison Bale Size  28" W x 20" D x 20" - 28" H

Bale Materials & Weight Examples
('Up to' wt. in lbs.)

Bale Volume  9 Cubic Feet Corrugated Cardboard - 65 - 90 lbs
Cycle Time  27 seconds Plastic Film / Wrap - 80 - 110 lbs
Cylinder  25" Stroke
Force  3,300 lbs
Electrical / Motor  1.5 HP
Overall Dimensions Height: 79" -  Width: 34" -  Depth (Door Open): 54"



Mini Baler Compactor - (PWM-2825)

Mini-Baler Compactor Comparison Bale Size 27.5" W x 27" D x up to 35" H

Bale Materials & Weight Examples
('Up to' wt. in lbs.)

Bale Volume 15 Cubic Feet Corrugated Cardboard - Up to 165 lbs
Cycle Time 35 seconds Plastic / Shrink Wrap - Up to 80 - 90 lbs
Cylinder 2.5" - Bore, 40" Stroke Paper - Up to 175 lbs
Force 7,000 lbs Cans - Up to 60 lbs
Electrical / Motor 2 HP Single Phase 220v  15 amp
Overall Dimensions Height: 91";- Width: 41"; Depth (Door Open): 66"



Mini Baler for Plastic Jugs - (PJL-2825)

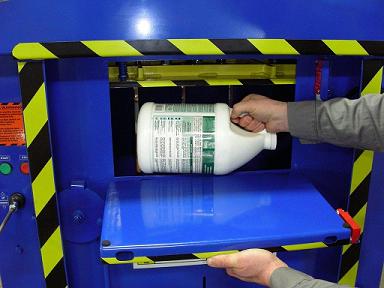

Plastic Jug Baler Loading Door Bale Size 27.5" W x 27" D x up to 35" H

Bale Materials & Weight Examples
('Up to' wt. in lbs.)

Bale Volume 15 Cubic Feet Plastic Jugs - 100 lbs
Cycle Time 35 seconds Plastic Bottles - 80 lbs
Cylinder 2.5" - Bore, 40" Stroke
Force 7,000 lbs
Electrical / Motor 2 HP Single Phase 220v  15 amp
Overall Dimensions Height: 103" - Width: 41" - Depth (Door Open): 66"







Note: Specifications, Dimensions & any other data may vary and is subject to change without notice Unless otherwise specifically noted, dimensions exclude options and standard 'perimeter buffer' that is required around equipment for normal operating area
