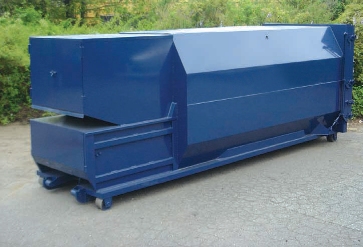

35 YARD SELF CONTAINED COMPACTORS
With 2-Yard Charge Box
SC-3500 - 35 Yd SELF CONTAINED COMPACTOR
SPECIFICATIONS
35 YARD SELF CONTAINED COMPACTOR - GENERAL INFORMATION
SC-3500 Self Contained Compactor - General Information |
||
| MFG Rating CU/YD | SC-3500-MRT | 2 |
| Wastec Rating CU/YD | SC-3500-WRT | 1.16 |
| Container Capacity | SC-3500-CCP | 35 |
| Clear Top Opening (L" x W") | SC-3500-CTO | 42.5" x 57.5" |
| Ram Face (H" x W") | SC-3500-RFC | 30" x 60" |
| Capacity Per Hour | SC-3500-CPH | 175 |
| Dimensions | SC-3500-DMN | 278" L x 96" W X 105" H |
| Weight | SC-3500-WGT | 10,500 lbs |
38 YARD SELF CONTAINED COMPACTOR - FORCE & PRESSURE INFORMATION
SC-3500 Self Contained Compactor - Performance Information |
||
| Cycle Time (Seconds) | SC-3500-CTI | 33 |
| Normal Force lbs | SC-3500-NFP | 40,824 |
| Normal Ram Face Pressure PSI | SC-3500-RFP | 22.7 |
| Ram Penetration | SC-3500-RPN | 6.5" |
38 YARD SELF CONTAINED COMPACTOR - HYDRAULIC / ELECTRICAL INFORMATION
SC-3500 Self Contained Compactor |
||
| Motor HP (3 Phase - 208 / 230 / 460) | SC-3500-MTR | 10 |
| Control Voltage | SC-3500-CVL | 120 VAC |
| Pump GPM | SC-3500-PGP | 11.5 |
| Normal System Pressure PSI | SC-3500-NSP | 1,800 |
| Maximum System Pressure PSI | SC-3500-MSP | 2,100 |
| Cylinder Bore/Rod Diameter (Twin Cylinder) | SC-3500-CBR | 4"/2" x 2 |
| Stroke | SC-3500-STK | 32" |
| Hydraulic Tank-Capacity Gallons | SC-3500-HTC | 25 |
38 YARD SELF CONTAINED COMPACTOR - CONSTRUCTION INFORMATION
SC-3500 Self Contained Compactor - Construction Information |
||
| Charge Box Sides | SC-3500-CBS | 1/4" |
| Exterior Vertical / Horizontal Formed V | SC-3500-VHF | 7 Ga |
| Charge Box Floor | SC-3500-CBF | 1/2" |
| Ram Face | SC-3500-RFC | 1/2" |
| Ram Bottom | SC-3500-RBT | 3/8" |
| Ram Top | SC-3500-RTP | 1/4" |
| Breaker Bar Structural Angle | SC-3500-BBS | 6" x 8" x 3/4" |
| Longsills | SC-3500-LGS | 6" x 2" x 1/4" |
| Understructure Floor | SC-3500-UFL | 7 Ga |
| Container Sides | SC-3500-CSD | 7 Ga |
| Top | SC-3500-TOP | 10 Ga |
| Door | SC-3500-DOR | 10 Ga |
SC-3500 Self Contained Compactor - Options |
| SC-3500-01 - Rear Feed Hopper, Walk on Deck w/Hand & Toe Rails, Access Gate & Interlock Safety Switch |
| SC-3500-02 - Rear Feed Hopper, Drive on Deck w/Hand & Toe Rails & Interlock Safety Switch |
| SC-3500-03 - Rear Load Hopper (3-Sided) & Gate |
| SC-3500-04 - Rear Load Hopper (4-Sided) |
| SC-3500-05 - Side Load Hopper (3-Sided) |
| SC-3500-06 - Doghouse with 1 Door |
| SC-3500-07 - Additional Door |
| SC-3500-08 - Enclosed Hopper w/Cellar Style Rear Doors |
| SC-3500-09 - Dock Level Hopper Side Load |
| SC-3500-10 - Dock Level Hopper Rear Load |
| SC-3500-11 - Security Door and Frame 40” x 40” |
| SC-3500-12 - Doghouse Enclosed for Chute |
| SC-3500-13 - Hinged Breaker Bar Teeth |
| SC-3500-14 - Container Guides 5’ |
| SC-3500-15 - Remote Controls on 15’ |
| SC-3500-16 - Advance Warning Light |
| SC-3500-17 - Container Full Light |
| SC-3500-18 - Hold to Run "Deadman" |
| SC-3500-19 - Auto Timer Start with Shutdown |
| SC-3500-20 - Multi Cycle Timer |
| SC-3500-21 - Additional Controls Station |
| SC-3500-22 - Photo Eye Start |
| SC-3500-23 - Oil Heater 208/230 |
| SC-3500-24 - Low Oil / Hi Temp Shutdown |
| SC-3500-25 - Ozone Odor Control |
| SC-3500-26 - Hydraulic Oil Cooler (10 HP – 15 HP Units) |
| SC-3500-27 - Jog Control |
SC-3500 Self Contained Compactors Dimension Diagram
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
