PORTAPACK COMPACTORS - DRUM READY
Use your Existing 55 Gallon Drums to Compact your Trash!

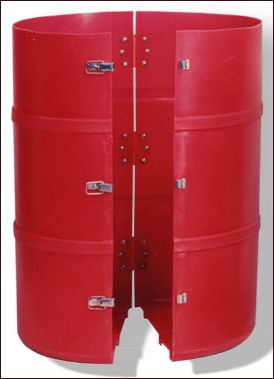

Easy Open (Latching) Container (Below)
When utilized, the latching system of this container allows customers to quickly and easily remove the compacted contents without having to empty the contents from the top. .
DRUM READY PORTAPACKERS
PA-55-6 (6" Diameter Cylinder)
PA-55-8 (8" Diameter Cylinder)
Request Automated Response with general pricing:
PA-55-6
or PA-55-8
Request Info on Multiple Products - (Secure Area)
Note: Unless proper internal procedures are followed, and the user / company has proper controls in place, it is not recommended that hazardous wastes of any kind be compacted.

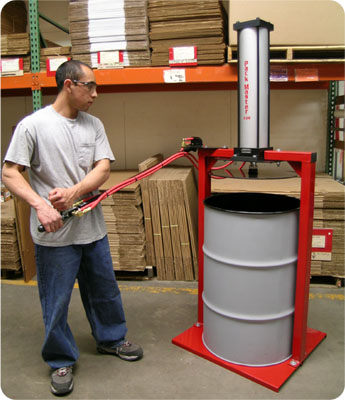

The PortaPack Drum Ready Compactors are very simple. Upon positioning the air driven compactor system over a typical 55 gallon drum or 30 gallon drum) all it takes is activation of a button / lever. Compaction ratios of up to 8 to 1 are attainable depending upon trash profile. If flammables are being compacted, order the optional PA-55-6 Spark Resistant version which has all contact surfaces covered in 1/4" Polyethylene material as a means of reducing the chance of sparks.
Operation is Simple, Convenient and Safe. (Two handed operation is necessary.)
Compressors that are sold at all major outlets is all that is required to generate the proper force for compaction. Basically a compressor with just a 20 gallon tank and 5 HP motor producing roughly 80 - 100 PSI). The Drum Ready systems have Two Hand, No Tie Down Actuators, spark resistant compaction plates and the units meet O.S.H.A Requirements. The only difference between Model PD-55-6 and Model PD-55-8 is that the PD-55 either comes with a 6" cylinder diameter or an 8" cylinder diameter (which
can produce up to 2,600 more pounds of force) for a better reduction ratio.
Note: These compactors are not designed for crushing glass containers or items that may shatter or contain volatile vapors.
Easy Roll Out Base Wheel Kit Wet Basket
OPTIONS AND ACCESSORIES:
6" Cylinder:
Easy Open (Latching) Container - When utilized, the latching system of this container allows customers to quickly and easily remove the compacted contents without having to empty the contents from the top.
Easy Roll Out Base: - Sliding base allows for an easier way to access the full drum of compacted waste for transporting to its desired location. (Cannot be used with Wheel Kit).
Wet / Sorbent Basket - Basket hangs inside any open top 55 gallon drum so that waste fluids can be squeezed out of adsorbent materials easily and safely. (The Wet Basket only works on Steel Barrels and not the Plastic Easy Open Container.)
Spark Resistant Compacting - If flammables are being compacted the machine has all contact surfaces covered in 1/4" UHMW Polyethylene material for reducing the chance of sparks.
Compressor - A 20 Gallon, 5 HP Compressor (generating roughly 80 - 100 PSI or up to 150 psi) is all that is required for operating this compaction system.
8" & 6" Cylinder:
Wheel Kit Add-on - Side Mounted Wheels for easy mobility of the Compactor - The typical application does not have the wheels shown in the photo since the wheels are not meant to be used for transporting the compacted waste. Generally a forklift, drum dolly or other material handling equipment is used to transport the compacted material. When the drum or box of compacted trash becomes full it can usually be positioned on the material handling equipment in a routine manner. (Wheel Kit cannot be used in conjunction with the Easy Roll-out Base).
6" CYLINDER COMPACTOR SPECIFICATIONS
Specifications |
|
| Container Capacity | .27 Cubic Yards or about 7 cubic feet |
| Compacted Trash Volume | Roughly 1.10 - 1.35 Cubic Yards |
| Reduction Ratio | Up to 5 to 1 |
| Compaction Force | 2600 Lbs of force @ 100 psi; 3900 lbs of force @ 150 psi |
| Cycle Time | 30 Seconds using 100 psi air supply |
| Cylinder Size | 6" |
| Rod | 1.75" |
| Stroke | 24" |
| Air Requirements | Standard Shop Air (8cfm @100psi) - Maximum 150 psi |
| Pressure Plate | 55 gallon - 20" Diameter |
| Drum Clearance | 39" H x 25.75" W |
Dimensions |
|
| Height | 76" (6.33') |
| Depth | 27" |
| Width | 36" |
| Required Operating Area | 80" H x 38" W x 48" D |
| Shipping Weight | Approx 225 lbs |
8" CYLINDER COMPACTOR SPECIFICATIONS
Specifications |
|
| Container Capacity | .27 Cubic Yards or about 7 cubic feet |
| Compacted Trash Volume | Roughly 1.35 - 2.0 Cubic Yards |
| Reduction Ratio | Up to 8 to 1 |
| Downward Pressure | Up to 6,000 pounds of force |
| Cylinder Size | 8" |
| Stroke | 27" |
Dimensions |
|
| Height | 72" (6.33') |
| Depth | 24" |
| Width | 29" |
| Shipping Weight | Approx 225 lbs |
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
