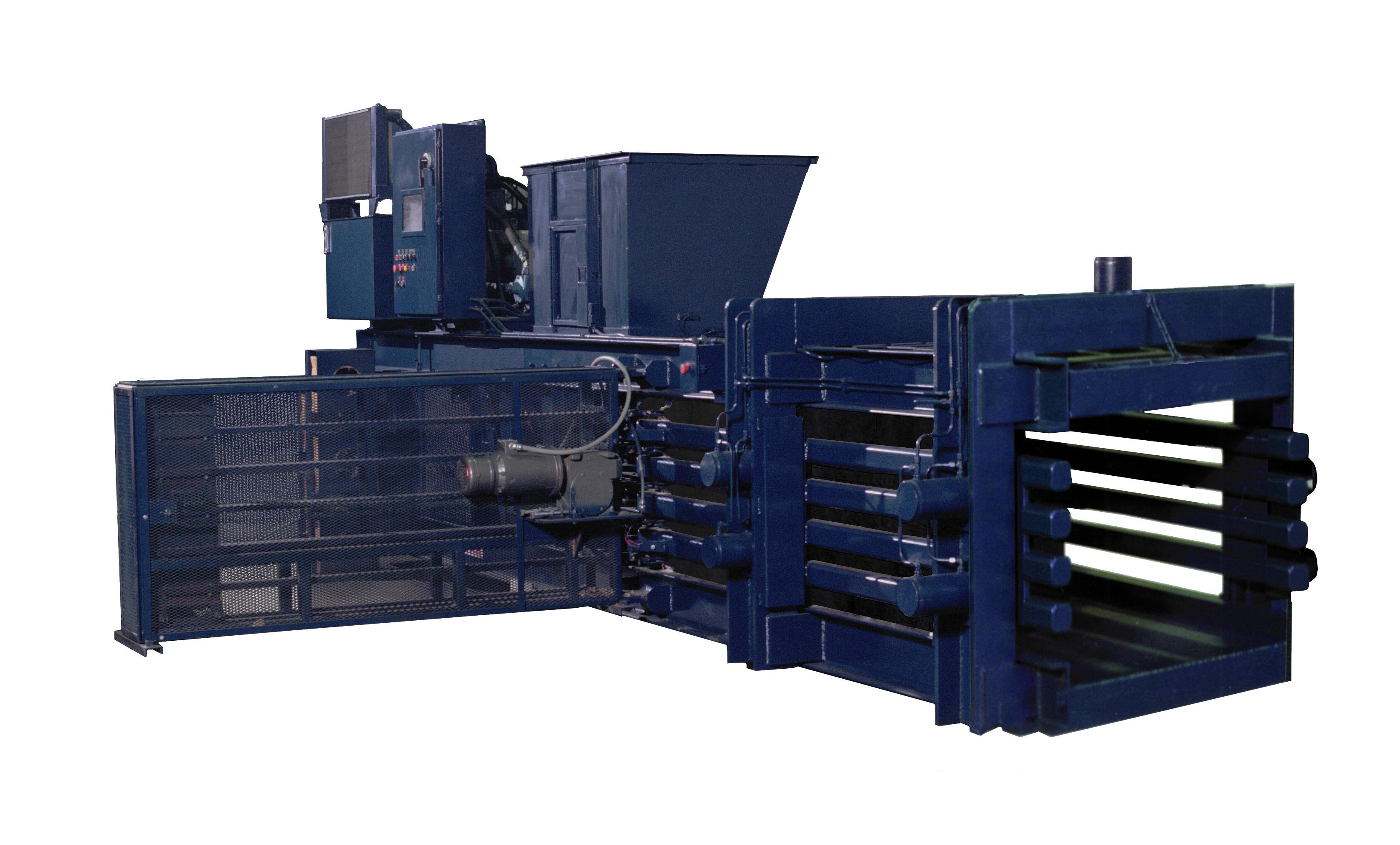

HO50-3812 automatic HORIZONTAL OPEN END BALER


Automatic Baler- Horizontal Open End

This Horizontal Baler is ideal for:

  • Municipalities
  • Distribution Centers
  • Manufacturing Facilities
  • Warehouses
  • Scrap Yards
  • Shopping Centers
  • Recycling Centers
  • Transfer Stations
  • Many other types of Industrial / Commercial Applications.

Bales a variety of materials including:

  • Corrugated Cardboard
  • Newspapers
  • Beverage Cans
  • Plastics
  • Metals
  • More....



            HO50-3812


To jump to the Comparison Chart on all Open End Horizontal Balers

Request Detailed Quote or other information - (Secure Area)

Request Automated Response with general price information

Typically, the best use and purpose of Open End Horizontal Balers is very high volume, continuous applications utilizing Auto-Tie  capabilities for producing up to 25 tons per hour.

In addition to maximizing bale weights size & speed, all balers are designed and produced with many other customer satisfaction factors in mind such as:

  • Reducing waste disposal costs while minimizing acquisition and start-up costs of waste handling equipment
  • Reducing labor costs
  • Streamlining overall waste processing operations for better productivity
  • Durability and reliability
  • Improving cleanliness and business image
  • Improving workplace safety
  • Achieving quick paybacks

Whether it is baling foam, film, fiber, cardboard, plastics, metals, magazines, paper or other materials, the design, components and construction is meant to produce many years of trouble-free economical service for our customers.





Baler Performance

Bale Size

30” x  40” x  72” (Variable)

Bale Volume

50 Cubic Feet

Cycle Time

12.43 Seconds (No Load)

Capacity 8,045 Cubic Feet Per Hour (No Load)

Estimated Bale Weights

Material

Bale Weight

Density Lbs/Cu Ft – Loose/Baled

30 HP  Bales / Hr

Shredded OCC

Up to 1,300 Lbs

2.5 / 26

Up to 4

Shredded Newspaper

Up to 1,400 Lbs

4 / 26

Up to 5

Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables.



Hydraulics

Main Pumps

52.5 GPM - Double Vane - 1 @ 31.5 GPM (800PSI) & 1 @ 12 GPM (2600 PSI)

System Pressure

2600 PSI Maximum

Main Cylinder

8” Bore, 5.5” Rod,  50” Stroke

Bale Tension Cylinders (4) - 5" Bore, 4" Stroke / (5) - 5" Bore, 2" Stroke

Ram Face Pressure

115.55 PSI Static

Overall Platen Force

130,691 Lbs

Oil Reservoir

300 Gallon Capacity

Hydraulic Manifold

Integral Relief, Subplate Circuit

Filtration 6 Micron
Air to Oil Cooler Optional

Electrical

Main Motor

30 HP  -  230/460v – 3 Phase (Standard)

Motor Type TEFC, High Efficiency, Across the Line Starting is Standard

Inserter Drive Motor

5 HP, C-Face, 1750 RPM, 230/460V, 3PH Brake Motor

Twister Drive Motor

2 HP, C-Face, 1750 RPM, 230/460V, 3PH Brake Motor

Controls

UL &  CUL Listed - Allen Bradley SLC500



Structural

Frame Design

MC Wide Webb Channel and Tube Steel Construction

Floor  & Platen

Standard Replaceable T-1 Alloy Steel Wear Surface Construction
Shear Blade T-1 Alloy Tapered V-Blade, Serrated Knife Block

Platen Guides

Tongue & Groove Floor Guides & Adjustable Platen Hold Down
Linen Phenolic Wear Side Guides
T-1 Top Wear Guides
Gib Bars A-1018

Subfloor

Tube Steel Lattice Network
Shipping Weight 29,000 lbs (Approximately)



Baler Dimensions  - Note: Specifications are sometimes rounded within a few inches +/-

Overall Height

100

Overall Width

150

Length - Door Open

375

Feed Opening 30" x 28"

Note: Dimensions do not include options (such as Hopper extensions) or 'perimeter buffer'



Other Baler Features     (Note: Some items may be options if specified)

Product meets or exceeds all ANSI Z245.5 and OSHA standards.
Product has NEMA 12
Bale Run Out Table
All Cylinders are trunion mounted for a stronger mount and more protection for the cylinder
All machines are shipped with hydraulic fluid in them
Regen Hydraulic Circuit for adding more speed to the system by bringing more fluid to cylinder
Air/Oil Cooler helps prevent the hydraulic oil from overheating (on all models except the 20HP)
Tongue and Groove Flooring helps keep material from getting under the platen
Wide Mouth In-Feed Openings for variety of materials and sizes
Automatic cycling, activated by electric eye in hopper feed chute
Safety interlocks which means the baler automatically stops when door or panel is opened
Rugged, reinforced baling chamber and door
Oversized locks, hinges and hydraulic components helps keep maintenance costs low
Lock-out Tag-Out provisions are incorporated



Main Baler Options

Option

Description

01

Remote Power Unit

02

Hopper Extension

03

Foam Hopper

04

Ultra Sonic Actuator

05

High Intensity Actuator

06

High Temperature / Low Oil Level Alarm

07

Soft Start - Reduced Amperage Starting

08

Upper Photo Eyes

09
Finger Safe Fuse Guards
10
Weatherproof
11
Oil Heater
12
Special Paint
13
Special Voltage
14
Conveyors
15
Conveyor & Cart Dumper Controls (for existing Conveyor or Cart Dump)
16
Cart Dumper

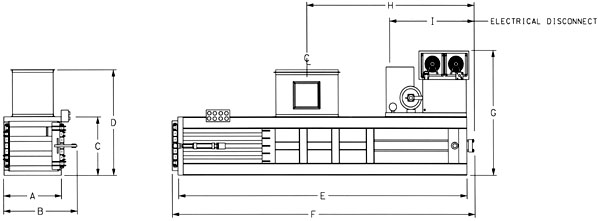

Horizontal Dimension Diagram:

A
B
C
D
E
F
G
H
I
HO50-2715
131.25
85.5
104
53
302.5
378
89
38.5
155





Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.

Performance may vary depending upon application.

Products must be installed and operated according to required standards, codes, regulations and safety procedures.
