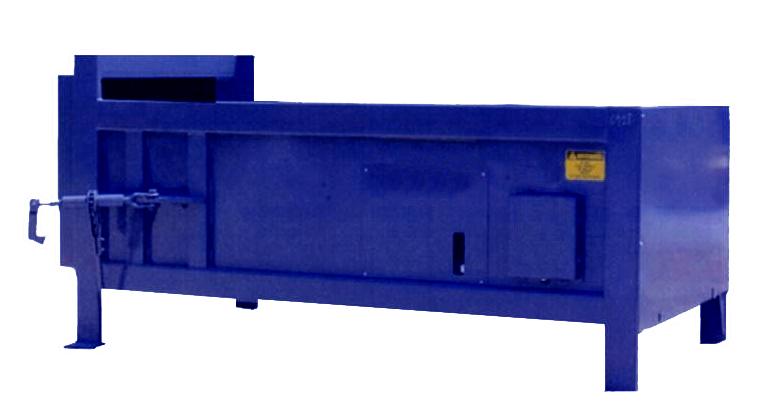

2 Yard STATIONARY  cOMPACTORS

(2 Cubic Yard Charge Box)







Stationary Compactor Containers



Note: Our two most standard Colors are Green and Blue and we will ship our choice of the two unless otherwise directed by Customer. Other colors available are Brown, Red, Gray and Black.



Helpful Articles for Deciding on 2 Yard Stationary Compactors:

About Compactors
Industrial Trash Compactors
Waste Compactors- Reduce the Trash Burden
Trash Compactors - Not Glamorous But Very Useful
Trash Compactors - Purchase Considerations and Tips
Trash Compactors - Preliminary Considerations Checklist
Waste Generated by Industry & Building Type (in lbs)
Waste Generated by Industry & Building Type (in CY)






ST-2X SERIES - 2 YARD COMPACTOR



Request Automated Response with general pricing - (Secure)
           ST-21             ST-22          ST-23

Request Info on Multiple Products - (Secure Area)

2 YARD STATIONARY COMPACTOR SERIES

BASIC STANDARD FEATURES:

  • UL Listed (Complete Units, not just the Control Panel)
  • Meets or exceeds ANSI Z245.5 safety standards.
  • Equipped with heavy duty controls
  • NEMA 4 rated push button controls with key lockable start switch.
  • Integrated Power Units (to compactor chassis) but accessible for maintenance or repairs
  • Adjustable UHMW Ram Guides for straight tracking & easily replacement if necessary.
  • Oil Sight Gauge makes it easy to check the oil level at a quick glance
  • Replaceable Spin-On Oil Filter cartridge
  • Single Cycle Operation
  • Much more

MOST POPULAR OPTIONS:

  • Remote Controls - Increased productivity and user friendliness
  • Ozone Odor Neutralizer - Ozone system destroys odor-causing bacteria
  • Oil Heater - Allows oil heater to be maintained at 70 degrees.
  • Special Color Code Pressure Gauge - Indicates 50%, 75% & 100% fullness with more accuracy
  • Hinged Breaker Bar Teeth - Helps to hold trash in place to reduce spring back.

Note: Our Compactors Preliminary Considerations Checklist may be helpful

Jump to Stationary Compactors Overview Page showing all Models

SPECIFICATIONS

2 YARD STATIONARY COMPACTOR SERIES - SIZE INFORMATION
Description Item Code ST-21 ST-22
ST-23
Charge Box Capacity - MFG Rating CU/YD ST-2X-BOX 2 2 2
Wastec Rating CU/YD ST-2X-WRT 1.5 1.5 1.5
Container Capacity ST-2X-CCP Optional Optional Optional
Clear Top Opening (L" x W") ST-2X-CTO 40" x 58.5" 40" x 58.5" 40" x 58.5"
Ram Face Dimensions (W" x H") ST-2X-RFD 60" x 28.5" 60" x 28.5" 60" x 28.5"
Overall Dimensions  (L x W x H - Rounded) ST-2X-DMN 9.7' x 6.2' x 4.9' 9.7' x 6.2' x 4.9' 9.7' x 6.2' x 4.9'
 Approximate Weight (lbs) ST-2X-WTG 3,900 4,200 4,500

2 YARD STATIONARY COMPACTOR SERIES - FORCE AND PRESSURE INFORMATION
Description Item Code
ST-21
ST-22
ST-23
Total Force  in lbs (Normal)  ST-2X-TFN
45,200
56,500
77,000
Total Force  in lbs (Maximum)  ST-2X-TFM
56,500
67,900
92,400
Ram Face Pressure in psi (Normal) ST-2X-RFN
26.4
33
45
Ram Face Pressure in psi (Maximum) ST-2X-RFM
33
39.7
54
Operating Pressure  in psi (Normal) ST-2X-OPN
1600
2000
2000
Operating Pressure  in psi (Maximum) ST-2X-OPM
2000
2400
2400

2 YARD STATIONARY COMPACTOR SERIES - HYDRAULIC AND ELECTRICAL INFORMATON
Description Item Code
ST-21
ST-22
ST-23
Motor HP  - 3 Phase - 208 / 230 / 460 vac ST-2X-MTR 10 10 10
Cycle Time  (in seconds - theoretical) ST-2X-CTI 63 63 52
Pump Capacity GPM ST-2X-PGP 10.5 10.5 10.5
Ram Penetration (in inches) ST-2X-RPN 13 13 13
Cylinder Bore / Rod Diameter  (in inches) ST-2X-CBR 6 / 3.5 6 / 3.5 7 / 4
Stroke  (in inches) ST-2X-STK 54 54 54
Hydraulic Tank-Capacity Gallons ST-2X-HTC 22 22 33

2 Yard Stationary Compactor Series - Configuration Related Options

'No Dock' Configuration Related Options

 ST-2X-1A - Enclosed Hopper with Door on Left plus Magnetic Safety Interlock

 ST-2X-1B - Enclosed Hopper with Door on Right plus Magnetic Safety Interlock

 ST-2X-1C - Left Side Top Open Hopper (Includes Dead Man Control)

 ST-2X-1D - Right Side Top Open Hopper (Includes Dead Man Control)

 ST-2X-1E - Four Side Open Top Hopper

 ST-2X-1F - Left Side & Top Open ANSI Compliant

 ST-2X-1G - Right Side & Top Open ANSI Compliant

 ST-2X-1H - 40" Thru The Wall Door & Sleeve Assembly

 ST-2X-1I -  48" Thru The Wall Door & Sleeve Assembly

 ST-2X-1J - 40" Thru The Wall Receiving Hopper

 ST-2X-1K - 48" Thru The Wall Receiving Hopper

 ST-2X-1L - 40" Thru The Wall Chute 7' Long

 ST-2X-1M - 48" Thru The Wall Chute 7' Long

 ST-2X-1N - 40" Fire Door Class B, 1 1/2 Hour Rating

 ST-2X-1O - Magnetic Interlock for Existing Remote


'Dock' Configuration Related Options

 Note: Items marked with * are not available on Model ST-2010



 ST-2X-2A - Dock Mount Walk-On w/ 42" Hopper & Hand Rail

 ST-2X-2B - Dock Mount Walk-On w/ Safety Gate, Hopper, Hand Rail & Magnetic Safety Interlock

 ST-2X-2C - Dock Mount Walk-On w/ 42" Hopper & Hand Rail  - 8 Feet Wide

 ST-2X-2D - *Dock Mount 8,000 lb Drive-On Walk-On w/ 42" Hopper & Hand Rail

 ST-2X-2E - *Dock Mount 8,000 lb Drive-On w/ Safety Gate, Hopper, Hand Rail & Magnetic Safety Interlock

 ST-2X-2F - *Dock Mount 8,000 lb Drive-On w/ 42" Hopper & Hand Rail  - 8 Feet Wide

 ST-2X-2G - *Dock Mount 12,000 lb Drive-On Walk-On w/ 42" Hopper & Hand Rail

 ST-2X-2H - *Dock Mount 12,000 lb Drive-On w/ Safety Gate, Hopper, Hand Rail & Magnetic Safety Interlock

 ST-2X-2I -  *Dock Mount 12,000 lb Drive-On w/ 42" Hopper & Hand Rail  - 8 Feet Wide

 ST-2X-2J - *Full Enclosure Walk-On  - 5 Feet Wide

 ST-2X-2K - *Full Enclosure Walk-On  - 8 Feet Wide

 ST-2X-2L - *Full Enclosure 8,000 lb  - 5 Feet Wide

 ST-2X-2M - *Full Enclosure 8,000 lb  - 8 Feet Wide

 ST-2X-2N - Safety Gate with Interlock Hopper Mounted & Magnetic Interlock Switch

 ST-2X-2O - Magnetic Interlock Switch for Existing Remote

2 Yard Stationary Compactor Series - General Options

 ST-2X-SU - Set-Up

 ST-2X-01 - Guide Islands @ 5 Feet

 ST-2X-02 - Guide Islands @ 10 Feet

 ST-2X-03 - 75% Full Light

 ST-2X-04 - 100% Full Light

 ST-2X-05 - 75% & 100% Full Lights Combined

 ST-2X-06 - Auto Cycle Operation via Photo Cell

 ST-2X-11 - Full Remote Controls 15 Feet (Power Unit Controls Deleted)

 ST-2X-12 - Full Remote Controls 15 Feet (Four Operators - Power Unit Controls Deleted)

 ST-2X-13 - Second Remote Controls

 ST-2X-14 - Remote Control - Additional Length (cost per foot)

 ST-2X-15 - Remote Power Unit with 10 foot hoses & weather cover - (Series 2000, 3000 & 4000 only)

 ST-2X-16 - Additional Hydraulic Hose for Remote Power Unit

 ST-2X-17 - Controls in Panel with Remote Controls

 ST-2X-18 - Magnetic Interlock Switch with Existing Remote

 ST-2X-21 - Deadman Operation

 ST-2X-22 - Multi-Cycle Operation - no selector switch

 ST-2X-23 - Multi-Cycle Operation - with selector switch

 ST-2X-24 - Conveyor Auto shutdown

 ST-2X-31 - Pressure Gauge (Factory Mounted)

 ST-2X-32 - Pressure Gauge (Field Mount - 15 Feet)

 ST-2X-33 - Additional Pressure Gauge hose (cost per foot)

 ST-2X-35 - Control Panel - Right Hand Mount

 ST-2X-36 - Oil Heater

 ST-2X-37 - Oil Cooler (80 Gallon and up)

 ST-2X-38 - Oil Level Shutdown

 ST-2X-39 - Oil Temperature Shutdown

 ST-2X-41 - Odor Control (Sonozaire - 630a)

 ST-2X-51 - Breaker Bar Teeth - Hinged

 ST-2X-52 - Breaker Bar Teeth - Fixed

 ST-2X-53 - Pin Off System and Jog Control

 ST-2X-54 - Jog Control

 ST-2X-55 - Lockable Relief Valve

 ST-2X-56 - Biodegradable Oil (Per Gallon)

 ST-2X-61 - Voltage Upgrade

 ST-2X-62 - Tri-Voltage Wiring

 ST-2X-63 - 5 HP Efficiency Upgrade

 ST-2X-71 - Non-Standard Color - Industrial Enamel Paint (All others POR)

2 Yard Stationary Compactor Series  - Diagram Dimensions (Rounded - in inches)

A B C D E F G H
117 40 74.5 49 59 58.5 15 39



2 YARD STATIONARY COMPACTOR DIAGRAM

2 Yard Stationary Compactor Diagram



Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.

Performance may vary depending upon application.

Products must be installed and operated according to required standards, codes, regulations and safety procedures.
