4 YARD VERTICAL OUTDOOR COMPACTORS

Four Yard Steel Container holds roughly 16 - 20 Yards of Compacted Trash







4 Yard Front Load Vertical Compactor

Compactor - Drivers Light





                         4-VOC - 4 YARD FRONT LOAD VERTICAL COMPACTORS

Request Automated Response with general pricing - (Secure)

Request Info on Multiple Products - (Secure Area)

Jump to Vertical Outdoor Compactors Overview Page showing all Models



4 YARD FRONT LOAD VERTICAL OUTDOOR COMPACTORS

The 4 Yard Vertical Compactor can easily be changed to a 6 yard Front or Rear Load Container, 8 yard Front Load Container or a 17 Yard Roll-Off without having to change the Compactor. Thus, if trash volume increases it is easy to upgrade to a larger container.



Note: Our Compactors Preliminary Considerations Checklist
may be helpful.

4 YARD VERTICAL OUTDOOR COMPACTORS -  FEATURES

4-VOC UL Listed Control Panel & meets ANSI standards
4-VOC Control Panel built into side of Compactor
4-VOC Interchangeable Containers without changing compactor
4-VOC Safety Interlocks for Container in place & Feed Door Shut
4-VOC Drivers 'Connection Light' for Front Load Haulers
4-VOC Latch Controls - Automatic disconnect FL Containers
4-VOC Key, Start, Stop and Full Light
4-VOC Leak Proof Containers / Self Contained Style
4-VOC Container Guide Track
4-VOC Quick Latch System locks and secures containers
4-VOC Retainer Teeth stops container spillage when emptying
4-VOC Quick Adjust Door Seals helps keep Roll-Offs liquid tight
4-VOC Hydraulic Unlatch - Roll-Off Drivers can remain in the truck
4-VOC Compactor accomodates Front Load, Rear Load or Roll-offs

OPTIONAL

4-VOC Single Phase 110v / 220v - 1 PH
4-VOC Drivers Light
4-VOC Remote 15'
4-VOC Photo Eye
4-VOC AutoChamber Close Off

4-VOC Oil Heater
4VOC Dock Hopper
4-VOC Double Doors

4-VOC 80% and/or 100% Full Light
4-VOC Alarm for indicating when the container is full
4-VOC Odor Control System (If added, Driver must exit truck when tipping)
4-VOC Seal Kit
4-VOC Front Load Guide Rails

(Other options may be available upon request)

4 YARD VERTICAL COMPACTOR SPECIFICATIONS

4-VOC - Specifications

Charge Size 4VOC-CHG  1 Cubic Yard
Motor 4VOC-MTR  3 HP
Electric Power 4VOC-PWR  3 PH - 208v / 230v / 460v    (Optional 1 Ph 110v / 220v)
Pump 4VOC-PMP  High / Low Gear
Pump Capacity 4VOC-CAP  5 gpm
Reservoir 4VOC-RSV  13 Gallons
Cylinder Size 4VOC-CYL  Two  3" Bore  -  Stroke: 16 - 1.5" Rod
Packing Force 4VOC-PFC  25,800 lbs Max - 22,400 lbs Normal
Ram Face Pressure 4VOC-RFP  16.5 PSI Max  -  14.5 PSI Normal
Operating Pressure 4VOC-OPR  2300 PSI Max - 2300 PSI Normal
Ram Penetration 4VOC-RPN  21 1/2" Breaker Bar to Max - 11" Past Retaining Teeth
Cycle Time 4VOC-CYC  26 Seconds  (Songle Phase - 34 Seconds)
Loading Height 4VOC-LHT  42" from ground
Chamber Opening 4VOC-CHB  46" x 33"
Ram Face 4VOC-RFC  46" x 33 1/2"
Compactor / Container Dimensions 4VOC-DIM  See Chart Below
Actual Weight 4VOC-WGT  2,700 - 3,100 Lbs. (depending on Container)



Compactor and Container Dimensions Chart
Description
Compactor Size
Feed Height
Overall Height
Container Size
Compactor & Container Length
Model
4 Yd Front Load
1 Yard
42"
95"
4 Yard
109"
Model 4-VOC-F
6 Yd Front Load
1 Yard
42"
95"
6 Yard
109"
Model 6-VOC-F
6 Yd Rear Load
1 Yard
42"
95"
6 Yard
148""
Model 6-VOC-R
8 Yd Front Load
1 Yard
42"
95"
8 Yard
114"
Model 8-VOC-F

(Note: Dimensions are rounded +/- a few inches and do not include the recommended buffer for normal service & operation)

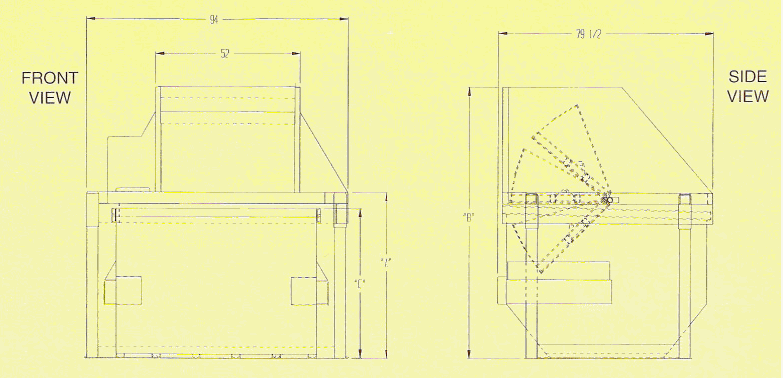

VERTICAL COMPACTOR DIAGRAMS
